Location data is a commodity that underpins decision making no matter the industry.

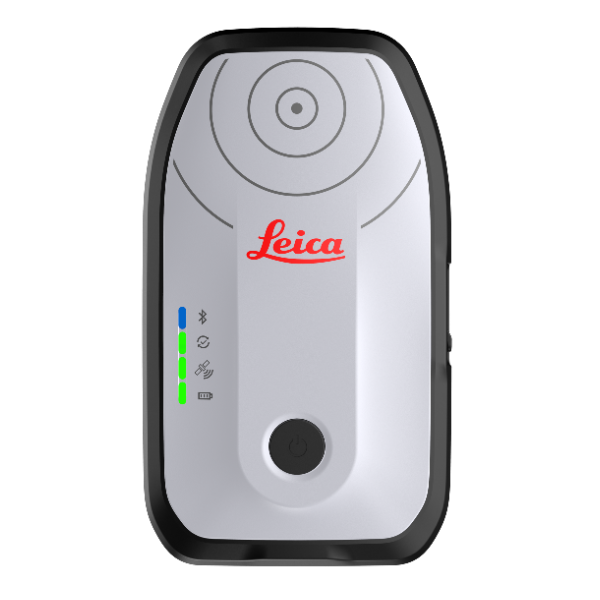

The Leica Zeno FLX100 smart antenna captures spatial data in a simple and flexible way allowing you the freedom to work how you want.
A universal handheld tray enables you to pair the FLX100 with your own smartphone or tablet. For higher accuracy data capture just use a survey pole leveraging HxGN SmartNet RTK technology.
-
Location data is a commodity that underpins decision making no matter the industry.
- GNSS TECHNOLOGY
Horizontal real-time accuracy RTK (Multi-frequency): 2cm + 1ppm*
Vertical real-time accuracy RTK (Multi-frequency): 3cm + 1ppm*
Post-processing accuracy static mode Horizontal: 2cm + 1ppm* Vertical: 3cm + 1ppm*
Satellite signal tracking n GPS (L1 C/A, L2C) n Glonass (L1OF, L2OF) n BeiDou (B1l, B2l) n Galileo (E1B/C, E5b) n QZSS (L1C/A, L2C) n SBAS: enabled through future firmware update Number of channels 184 channels
Update rate Up to 10 Hz (0.10 sec)
Supported operating systems n Android n Windows
Real-time protocols RTCM 3.0, RTCM 3.1, RTCM 3.2, RTCM 3.3, RTCM MSM
GNSS initialization n Cold Start: 24s n
Reaquisition: 2s
User interface On/Off key
Status indicator (LED): satellite tracking, corrections, Bluetooth® communication and battery power
Communication port Bluetooth® LE 4.2
POWER MANAGEMENT
Battery Internal (3.8 V / 6120 mAh)
Battery charging time 4 hours to full charge Power DC 5V/2A
Operating time >20 hours
PHYSICAL SPECIFICATIONS
Weight and dimensions 313g, 136 mm x 78 mm x 30.5 mm
Proof against water, sand and dust IP67
Operating/Storage temperature range n
Operating: –40 to 65°C n
Storage: –40 to 80°C
Humidity Rarely and slightly condensing. ISO 9022-12-04 (+65°C, 92%, 62h)
Drop 1.2m
Vibration Withstands strong vibration. ISO 9022-36-05 (10-55 Hz / ±0.15 mm / 5 cycles -
