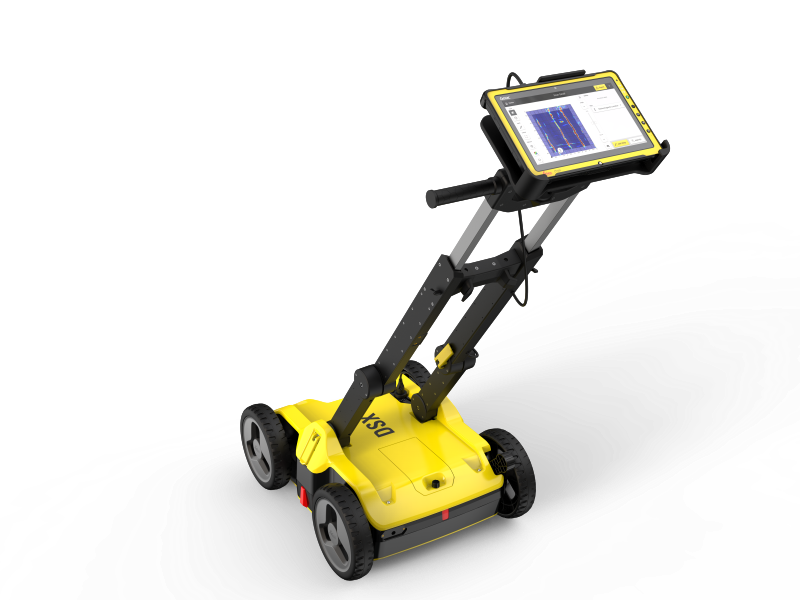

Leica Geosystems DSX GPR for Rent

$25,000.00
SKU

For underground utility repair and maintenance requirements, the Leica DSX utility detection solution provides an easy to use ground rover with intelligent software, allowing you to locate, visualize utilities, and generate a 3D utility map. Unlike any other ground penetrating radar (GPR) system, the DSX solution maximizes productivity with cutting-edge software that automates data output, guides you to the correct way to collect data, and creates a 3D utility map right in the field.

Reliable Detection Result

  • Detect all types of underground utilities in high resolution to assure reliable avoidance zones
  • Verify detected utilities and give you peace of mind
  • Supports importing point-of-interest aspects as well as utility records to help you make better decisions

Ease of Use

  • Ensure smooth and accurate underground utility detection without expert knowledge
  • Complete utility detection and mapping in just a few steps through intuitive user interface
  • Scan anywhere and at any time, even in narrow areas and under severe conditions

Uncovering utilities clearly and effortlessly

The solution consists of portable hardware and an all-in-one upgradeable DXplore software. The software is offered as permanent subscription and time-limited options, to match your project requirements and allow maximum flexibility.

Instant 2D/3D Utility Map

  • Save time on site by mapping underground utilities in just minutes
  • Export utilities in CAD or BIM-ready formats for further usage
  • Create professional reports, customizable

Integrated Solution

  • Offers a complete workflow from data acquisition to excavation
  • Locate underground utilities with survey-grade accuracy
  • Generate utility maps, compatible with all coordinate reference systems


DSX Utility Detection Radar   CT1000 Tablet
Central Frequency 600 MHz Display 11.6"
Detection Depth Up to 2m / 6.56ft Processor Intel® Core™ i3-7100U
Acquisition Speed Up to 7km/h or 4.3mph Memory RAM 4GB, 128GB SSD
Scan Interval 0.50m / 18in Operating System Windows 10 Professional
Positioning 2 encoders on wheels; GNSS antenna integration (Surveyor kit only) Positioning GPS (GlobalSat)
Environmental IP65 Environmental Sunlight readable display (LCD + Touchscreen + Hard Tip stylus)
IP65 / MIL-STD-810G
Weight (without battery and tablet) Weight 1.39Kg
Battery Li-ion 14.8V / 5800mAh
up to 8 hours operating time
Battery Li-Ion 11.4V / 2160mAh
Operating Temperature –10°C to +40°C / 14°F to 104°F Communications WiFi, Bluetooth v4.2, 4G LTE
(Model 880920)
RJ45 – connection to DSX
Warranty 2 years (extension CCPs available) Warranty 2 years Global Warranty
(battery – 1 yr)
