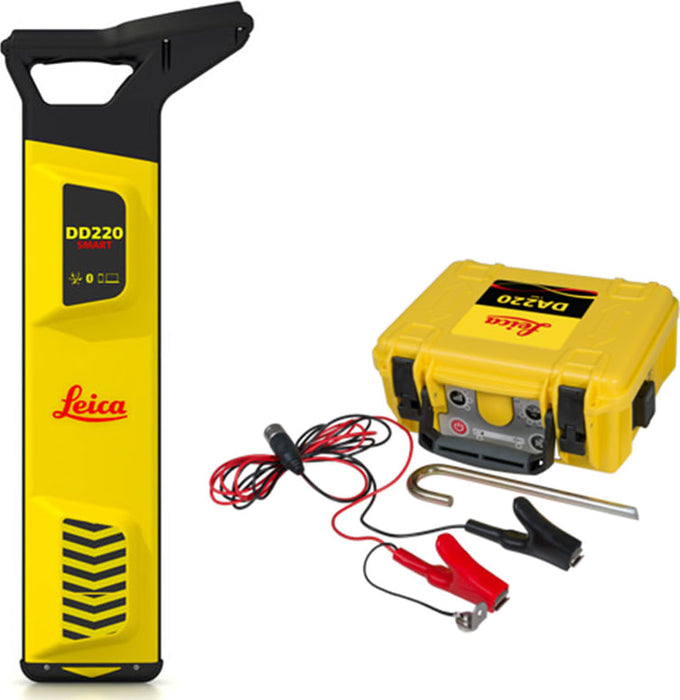

The new Leica DD SMART utility locator solution, including DX Shield software and signal transmitters is the only complete portfolio of detection solutions for utility professionals and anyone who is breaking ground. The Leica DD SMART utility locator series uses industry-leading digital signal processing to identify underground assets deeper, faster and more accurately than any other system. The new SMART utility locator solution allows users to detect buried utilities, transfer and access data remotely to a hosted service for multiple users, across multiple sites to manage site activities. The Leica DD SMART series uses industry-leading digital signal processing to identify underground assets deeper, faster and more accurately than any other system. SMART technology records information to manage site activities and map buried utilities, protecting your assets, personnel and utilities.
Leica DD SMART Locators & DX Shield Software - Connectivity brings more productivity and saves time.
The Leica DD SMART utility locators and DX Shield software open the door to a connected world, anywhere, anytime. The Leica DD SMART utility locators automatically identify underground assets deeper, faster and more accurately. Understand site activity and utility locator use in greater detail with DX Shield software. The DD SMART locators are scalable and designed with the latest Bluetooth technology, providing a wire-free connection to field controllers and mobile devices. Connect and download data stored in the DD SMART utility locators’ internal memory, including GPS positioning, and transfer back to the office. USB connectivity provides a convenient connection to DX Office Shield software for data download, analysis and product maintenance. Leica DD SMART utility locators and DX Shield software provide a true single-source solution for all your field activities.
Leica DX Shield - To be more productive and efficient, you need to streamline operations.
The new Leica DX Shield software provides organisations with a single-source solution protecting operators and utilities from harm. Auto sync and access your collected data using your mobile phone. The DX Field Shield app provide operators with a remote transfer tool, linking data from the site to DX Office Shield or DX Manager Shield hosted service. DX Manager Shield provides organisations with a centralised hosted platform for multiple users, across multiple sites. DX Office Shield provides organisations with a scalable local solution on a single-source platform. The success of your business rests on two valuable investments; Leica DD SMART utility locators and Leica DX Shield Software.
Accuracy
Locate and trace accurately your utilities with simple workflows, increasing capability to analyse your assets performance in less time. Personalise and enhance reports to provide actionable outcomes improving site safety and workflows. With the DD SMART utility locators and the DX Shield software more utilities are located. With the locators’ new technology there is a reduced need for multiple sweeps.Safety
On-board video support, usage alerts and diagnostics to protect your assets and your site workers with a SMART solution. DX Shield software and DD SMART utility locators provide organisations with a mechanism to review and report on assets use, which allows organisations to improve process and products usage.Operating frequencies
| Mode | Frequency | Sensitivity @ 1 meter |
|---|---|---|
| Power | 50 Hz or 60 Hz mains electrical and harmonics | 3 mA |
| Radio | 15 kHz to 60 kHz | 25 μA |
| Auto | Power, Radio, 33 kHz | Mode dependent |
| Transmitter | 131.072 (131) kHz 32.768 (33) kHz 8.192 (8) kHz 512 Hz (DD230 series models) 640 Hz (DD230 series models) |
5uA 5uA in 100uA 500uA 500uA |
Depth estimation
| Locator | DD220 series | DD230 series |
|---|---|---|
| Depth range | Line 0.1 m to 5 m | Line 0.1 m to 7 m |
| Sonde 0.1 m to 7 m | Sonde 0.1 to 10 m | |
| Depth accuracy (Undistorted signal) |
5% |
5% |
