RIDGID SeeSnake® Compact M40 Camera Reel for Rent

by RIDGID
$10,000.00
SKU

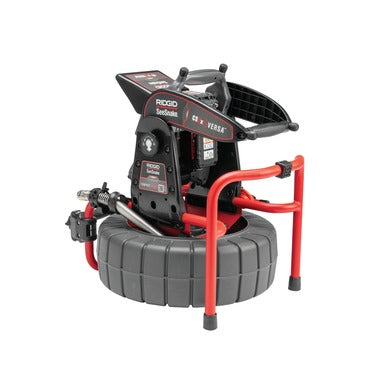

The Compact M40 Camera System offers similar performance to the SeeSnake Mini in the popular Compact form factor, combining a small package and all-in-one monitor capability. Now available with TruSense™ technology. The Compact M40 has 131' (40 m) of moderately stiff push cable, providing a good compromise between stiffness and the ability to navigate turns.



Features

  • Quick-release docking system for fast, efficient job setup with the SeeSnake® CS6x Versa monitor.
  • Sturdy metal frame provides a solid base that makes it easy to push and retrieve the cable.
  • Powerful Flexmitter® sonde has long range and preserves the camera's ability to make turns.
  • High dynamic range (HDR) image sensor offers bright, clear in-pipe imaging in difficult lighting conditions
  • TiltSense™ displays the camera's angle in a pipe on a connected SeeSnake® CSx series monitor.

Specifications

Line Capacity 1.5" to 8" (38 mm to 203 mm)
Push Cable Length 131' (40 m)
Push Cable Diameter 0.36" (9.1 mm)
Push Cable Core 0.14" (3.5 mm)
Fiberglass Push Cable Bend Minimum Radius 3" (76 mm)
Weight (without batteries) 22 lbs. (10 kg)
Size Length 25" (63.5 cm)
Width 14" (35.6 cm)
Height 17" (43.2 cm)
Camera Type 1" (25 mm)
Frequency 512Hz
Operating Temperature 14°F to 122°F (-10°C to 50°C)
Storage Temperature 14°F to 158°F (-10°C to 70°C)
Ingress Protection (without Monitor) IPx5



Brochure (ridgid.com)

Operation Manual (ridgid.com)
