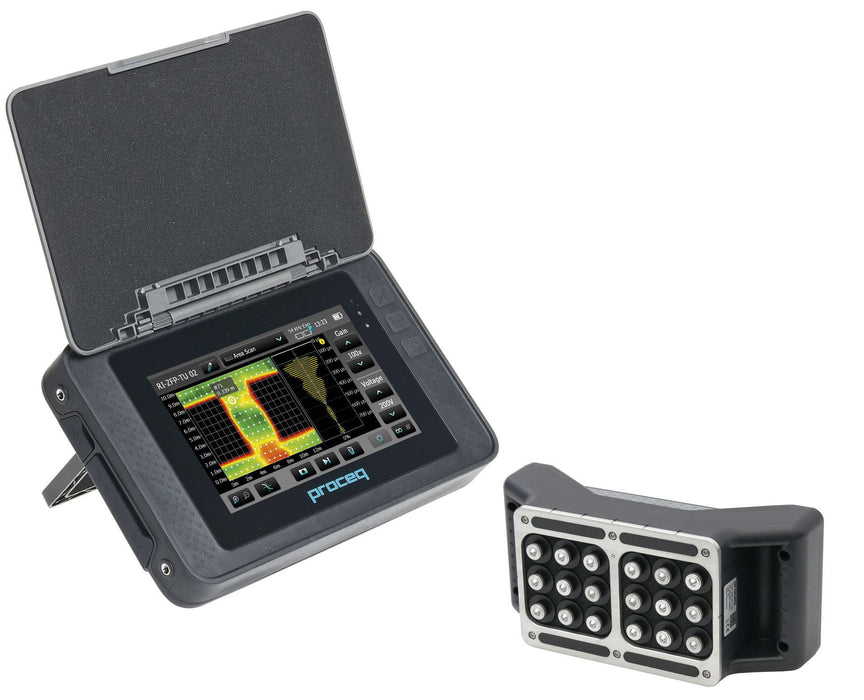

Proceq Pundit PL-200 PE For Rent

by Proceq
$8,020.00
SKU

PL-200PE ultrasonic concrete test system. This system can determine depth of perpendicular cracks, slab thickness from a single side and it can also locate and measure voids, pipes, cracks parallel to the surface. It will estimate the 'internal' compressive strength of the concrete.

For used and refurbished options, call 1 (770) 674-2489.

  • Product Overview
  • Technical Specifications
  • Resources
  • Videos
  • Area Scan:

    2D-Visualization for uniformity testing of slab thickness on structural elements.

    • Direct calculation of the E-Modulus on the instrument
    • Measure P- and S- Wave Velocities on the same screen (Dual Cursor)
    • Poisson`s Ratio also calculated on PL-Link Software


    A-Scan

    • A-Scan allows direct analysis of the raw signal.
    • Digital Filters for better echo visibility and noise suppression.
    • Automatic readout of slab thickness (Echo Tracker).


    B-Scan

    • A cross-sectional view perpendicular to the scanning surface is provided. It facilitates the search of pipes, cracks, voids etc.
    • State-of-the-art image processing for improved image quality.
    • Cursor placement allows a direct readout of the slab thickness and the location of hidden objects or defects.


    Features:

    • Single side determination of slab thickness
    • Detection and localiztion of voids, pipes, cracks (parallel to surface) and honeycombing
    • Advanced echo tracking technology helps identifying the main echo
    • Control buttons and optic feedback directly on the probe increase measurement efficiency
    • Automatic estimation of pulse velocity
    • Easy B-scan measuring through center marker and rulers directly on the probe
    • Dry contact transducer: no couplant required suited for measuring on rough surfaces
    • Lightweight and ergonomical handling
    • Expandable with pulse velocity transducers
    • Model Name/Number Pundit PL-200PE
      Usage/Application In lab inspection of concrete cubes under examination or on field inspection.
      Type Of Testing Machines Ultrasonic pulse velocity tester
      Display Type Touch screen 7" color display 800 x 480 pixels
      Brand Proceq
      Resolution 0.1 micro second (less than 793 micro second) ; 1 micro second (greater than793 micro second)
      Range 0.1 - 7930 micro second
      Pulse Voltage UPV 100 - 450 Vpp / UPE 100 - 400 Vpp
      Bandwidth 20 to 500 kHz
      Receiver Gain 1x - 10000 x (0-80dB) [11steps]
      Memory Internal Flash memory 8GB
      Regional Settings Metric and imperial units and multi-language supported
      Battery Lithium Polymer,3.6 V,14.0 Ah
      Battery Lifetime Greater than 8h (in standard operating mode)
      Operating Temperature 0 - 30 deg C (Charging,running instrument) 0- 40 deg C (charging,instrument is off)
      Humidity Less than95% RH,non-condensing
      IP Classification IP54
