Rebar location is a central activity for anyone involved in on-site testing of reinforced structures. Locating rebars is a necessity when drilling, cutting coring as well as a preliminary operation required for most other non-destructive investigations. Other typical applications include conformity check of new buildings, investigations on unknown structures and corrosion analysis. The eddy current pulse induction principle is the only imaging technology not influenced by concrete composition and humidity, which leads to a high cover accuracy under every scenario.
Since the early 1970s, Proceq has been addressing those different needs through a continuous development effort of rebar locators and concrete cover meters, offering the best features needed for any specific application.
-
Description The Profometer 650 AI is an advanced cover meter based on the new generation Profometer touchscreen with universal probe and scan cart. Enhanced correction factor for maximum cover accuracy on congested rebar arrangements. Dedicated functionalities for mapping concrete cover and for reporting any 2D rectangular rebar arrangement.
The Profometer 630 AI is an advanced cover meter based on the new generation Profometer touchscreen with universal probe and scan cart. Enhanced correction factor for maximum cover accuracy on congested rebar arrangements. Dedicated functionalities for mapping concrete cover and for reporting one layer rebar arrangements.

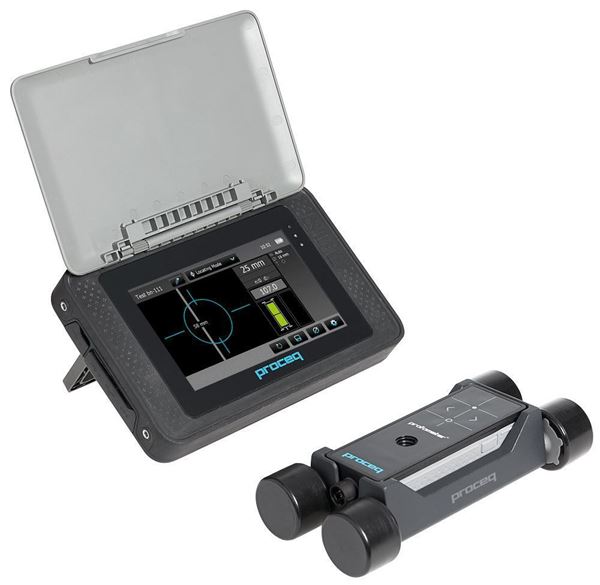

The Profometer 600 is an advanced cover meter based on the new generation Profometer touchscreen allowing full data review directly on the instrument. Lightweight IP 67 universal probe with detachable scan cart and spot functionality for measurements where space is limited.
Your Benefits
Highest cover measurement accuracy ever through Artificial Intelligence (AI) feature
Full 2D rebar visualization with detailed cover, rebar size and spacing data for fast reporting
Scalable solution with upgrade possibility to Profometer Corrosion
Highest cover measurement accuracy ever through Artificial Intelligence (AI) feature
Advanced statistical tools to evaluate concrete cover compliance to specified minimum values
Scalable solution with upgrade possibilities to Profometer 650 AI and Profometer Corrosion
Scalable solution with upgrade possibilities to Profometer 630 AI/650 AI and Profometer Corrosion
Profometer entry level model
Ruggadized scan cart allows measurements on rough surfaces with optional extension rod
Cover Measuring Range Up to 185 mm
Up to 185 mm
Up to 185 mm
Cover Measuring Accuracy ± 1 to 4 mm, depending on cover
± 1 to 4 mm, depending on cover
± 1 to 4 mm, depending on cover
Path Measuring Accuracy On Smooth Surface 0.5 to 1.0 % of measured length
0.5 to 1.0 % of measured length
0.5 to 1.0 % of measured length
Diameter Measuring Range Up to 63 mm
Up to 63 mm
Up to 63 mm
Diameter Measuring Accuracy ± 1 rebar size
± 1 rebar size
± 1 rebar size
Available Upgrades To Profometer Corrosion
- To Profometer 650 AI
- To Profometer Corrosion
- To Profometer 630 AI/650 AI
- To Profometer Corrosion
-
